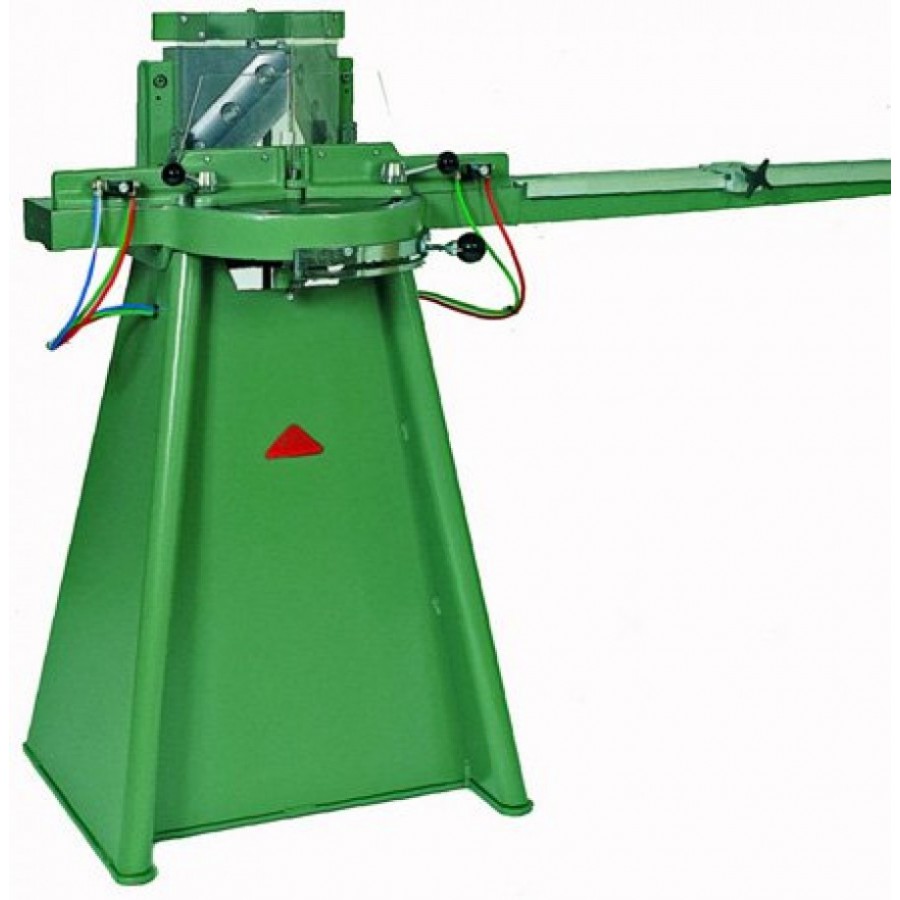

"Morso H" Guillotine

NOTE: Prices are approximate and subject to negotiation. The

MORSO-H pneumatic

, semi-automatic angle cutting machine operates on the same principle as the MORSO-F, but is pneumatically driven. The MORSO-H is activated by simultaneously releasing buttons with both hands, ensuring operator safety by preventing contact with the blades during operation.
The MORSO-H eliminates the need for constant foot operation, as the pneumatic cylinder that pulls the blades through the workpiece ensures an easy and smooth operation. The lever system is identical to that of the MORSO-F guillotine. The MORSO-H is well-suited for mass production. The noise level is only 70 dB. As with other MORSO guillotines, cutting waste falls onto a mounted slide.
The MORSO-H leaves the cut surface of the wood perfectly smooth and precise, so the strips require no further preparation before joining.
A special lever system ensures easy operation of the machine. The longitudinally adjustable stop and measuring scale enable precision in mass production.
The MORSO-H is supplied with the following equipment: safety guard, simultaneous switch release system, longitudinally adjustable stop, 1500 mm measuring scale, adjustable angle guides (45–90°), and adjustable strip supports. It comes with 1 set of blades installed.

Technical specifications
MORSOH
Double angle cut 45°
Single angle cut up to 90°
Max. cutting width 100 mm (4'')
Max. cutting height 160 mm (6 1/3'')
Square cut 65/65 mm (2 1/2") Measuring
scale up to 1500 mm (60") Air
pressure 6-8 bar Air
consumption 9 liters
Flexible connecting hose, min. 10 mm (13/32")
