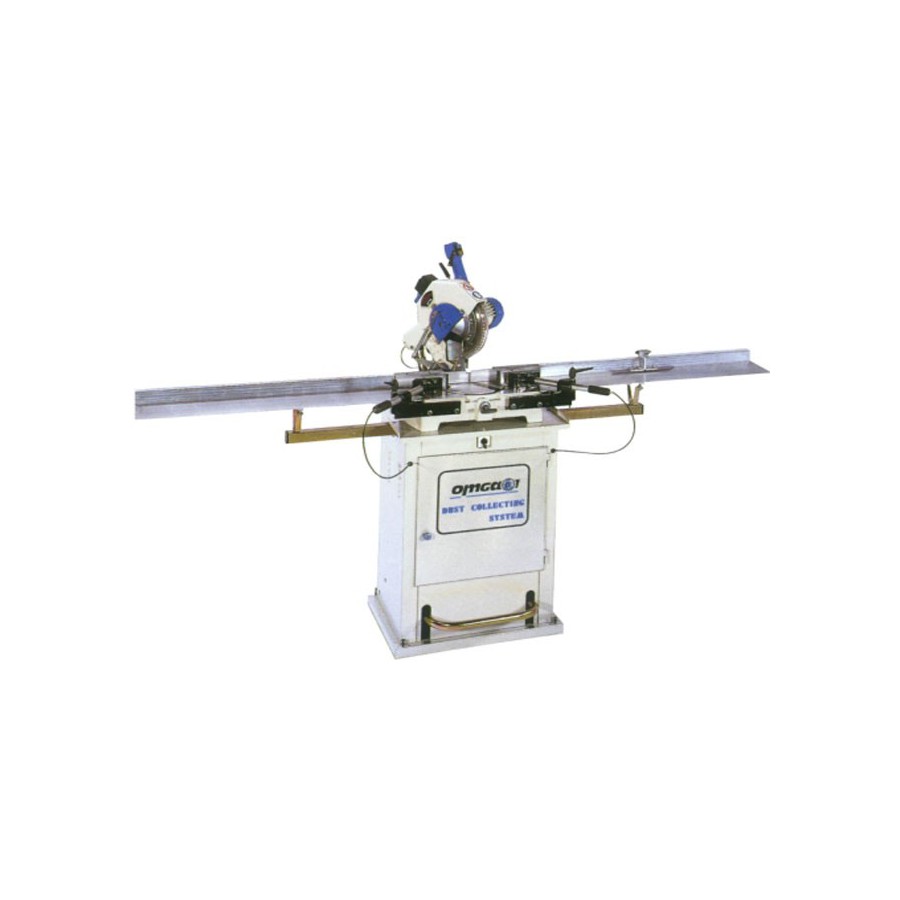

"Omga" T 55/300 single-blade saw, fully equipped

NOTE! Prices are approximate and subject to negotiation.

The T55/300 saw is the ideal machine for a framing shop due to its accuracy, reliability, and ease of use. It features high rotational speeds for both right- and left-hand cuts, as well as a rotating table with a self-centering lock for main angles of 90°, 45°, 30°, 22°, 15°, and 10°, and a manual lock for intermediate angles, activated by a lever with a handle on the front of the saw.
The 300 mm diameter carbide-tipped blade with 96 teeth allows for precise cutting. The maximum cutting dimensions at a 45° angle are 90x78 mm.
The saw performs best when fully equipped, i.e., with a base featuring a dust collector, extension arms with a measuring scale patented by Omga, a plexiglass stop, and a rip fence lock.

Descriptions for the T55/300 saw
High-speed switch
Plexiglass stop
Extending arms with measuring scale and support
Base with dust collector Foot
lock Technical


specifications OMGA SAW MODEL T55/300

MACHINE TYPE - OMGA T55/300 SAW
BLADE TYPE - CARBIDE-TIPPED DIAMETER 300 mm
WEIGHT - APPROX. 47 KG
CUTTING HEIGHT - 37/135 mm
CUTTING WIDTH AT 45° - 26/90 mm
CUTTING WIDTH AT 90° - 37/135 mm
MOTOR - 1.2 kW belt drive

EQUIPMENT

- rotating table with self-centering lock for main angles (0°, 15°, 22.5°, 30°, 40°)
- manual for intermediate angles,
- base with dust
collector - two supports for the blade guide shelves
- blade guide shelves with a 1250 mm
measuring scale - 45° plexiglass
stop - HM blade, diameter 350 x 3.5; Z=96.
