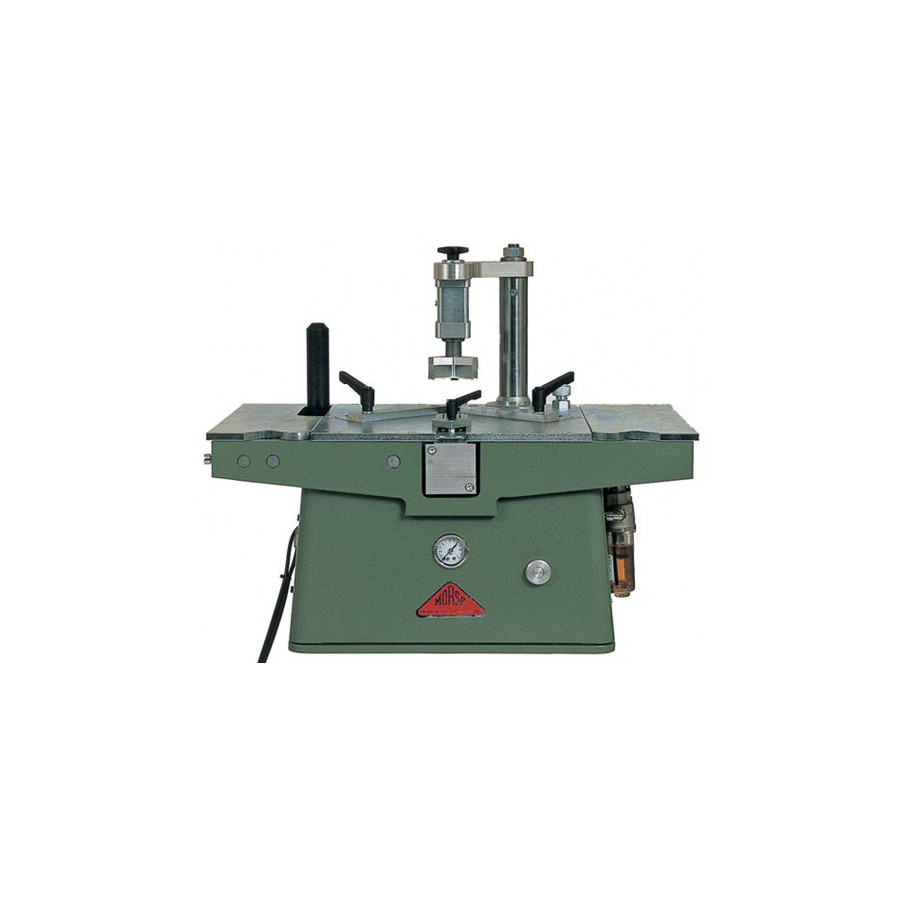

MORSO UP-A Hydraulic Stapler

The MORSO UP-A stapler is a fully automatic, pneumatic bench-top stapler powered by a system of two side switches that are released simultaneously. Thanks to this system, the UP-A stapler is a completely safe device.
The stapler is delivered fully equipped and includes: 2 staple position locks (min. and max.), three clamps—one single clamp for flat strips and two for profiled strips—a horizontal strip clamp ensuring a perfect joint, an adjustable angle stop: up to 90°, 60°, and 30°, for rectangular, hexagonal, and octagonal frames, two staple magazines for 7 mm and 10 mm staples, an air filter, an oil humidifier, 7 mm staples (5,000 pcs) and 10 mm staples (3,000 pcs), and a pneumatic locking pedal.

Technical specifications
MORSO-UP-A Air
pressure 6–8 bar
Staple sizes 5, 7, 10, and 12 mm
Min. strip height 6 mm
Max. strip height 65 mm
Min. strip width 6 mm
Max. strip width 150 mm
Max. spacing between staples 130 mm
Weight 50 kg
Height, workbench 272 mm Device
dimensions 575 x 330 x 490 mm

Additional equipment:
Stand for UP-A
Magazine for 5 mm and 12 mm staples
