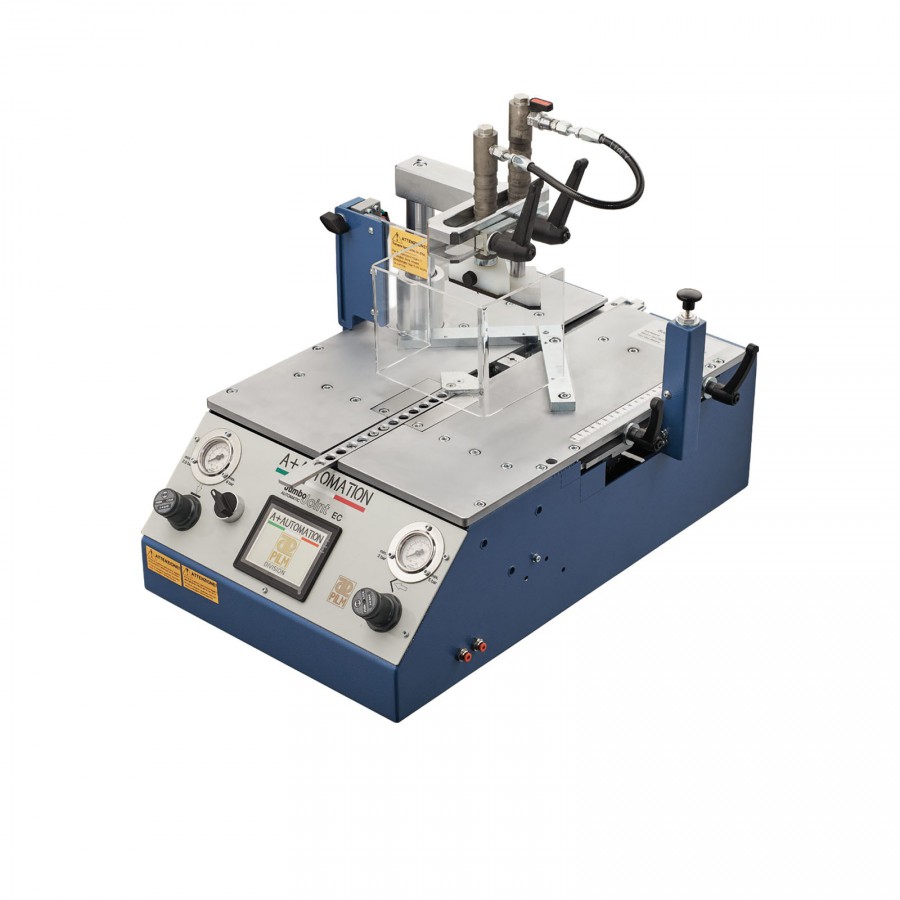

Zszywarka pneumatyczna PILM Jumbo Joint Automatica 3P

NOTE: Prices are approximate and subject to negotiation. Automatic

pneumatic stapler with 3 stations This
is the most comprehensive machine for joining strips, as it allows for operation in both manual mode (for smaller quantities) and automatic mode (for mass production). It drives one or more staples into 3 different positions, over a length of 120 mm. It can be used to staple moldings of various shapes and in different wood species, using all available staple sizes. It features separate function controls, grouped on the front panel in front of the operator, including a control for the speed of the clamp lowering onto the strip and the staple ejection speed, as well as a system that locks the machine when staples are missing. It comes standard with two self-leveling clamps and an angle adjuster. It can be additionally equipped with a high-speed automatic staple feeder that holds 2,200 staples. The JUMBO automatica 3P is a reliable and easy-to-use machine.

Available optional accessories:
-
halogen lamp
- 120° angle bracket - 135° angle bracket
- 7 mm guide rail
extension- additional work surface for the tilting
table- weight-balancing mechanism for the staple ejector when the base is
tilted- automatic staple
feeder- cabinet-style base with shelves and a
lock- base with storage shelves-
arms-
glue

applicator Cross-section of the cut strip - min. 8x5mm; max
120x110mm Air consumption 3.3 L/min at 7 bar per cycle
Dimensions - 35 x 70 x 40 cm
Weight - 52 kg
